MK 7) Fuse Details Fuse Box Location

Before you ask a question, check to see if it's been asked before. We show all the common Transit faults here and it's a good idea to read through these in case they happen to you in the future!!

MK 7) Fuse Details Fuse Box Location

Postby ake » Sat Jul 18, 2009 11:36 am

The Mk 7 transit has 3 fuse boxes, one under the bonnet and two behind the glove box

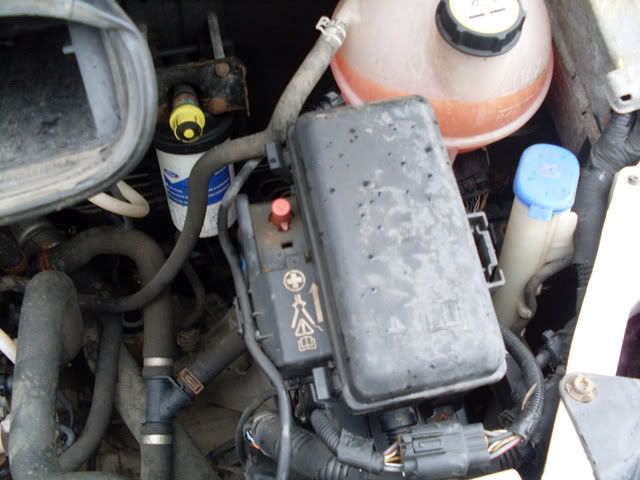

Underbonnet Fuse Box
This is located to the right hand side of the engine bay


And with lid removed


Here is the Fuse list


Inside fuse boxes

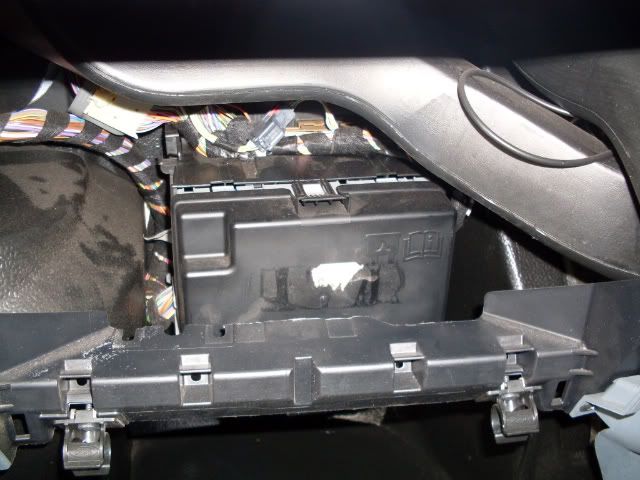

There are 2 fuse boxes behind the glovebox, to get to them open the glove box, remove the contents, then squeeze the retaining clips and pull it fully forward till its right out and upside down, you should then see this


If you then unlip the cover you have found the first fuse box

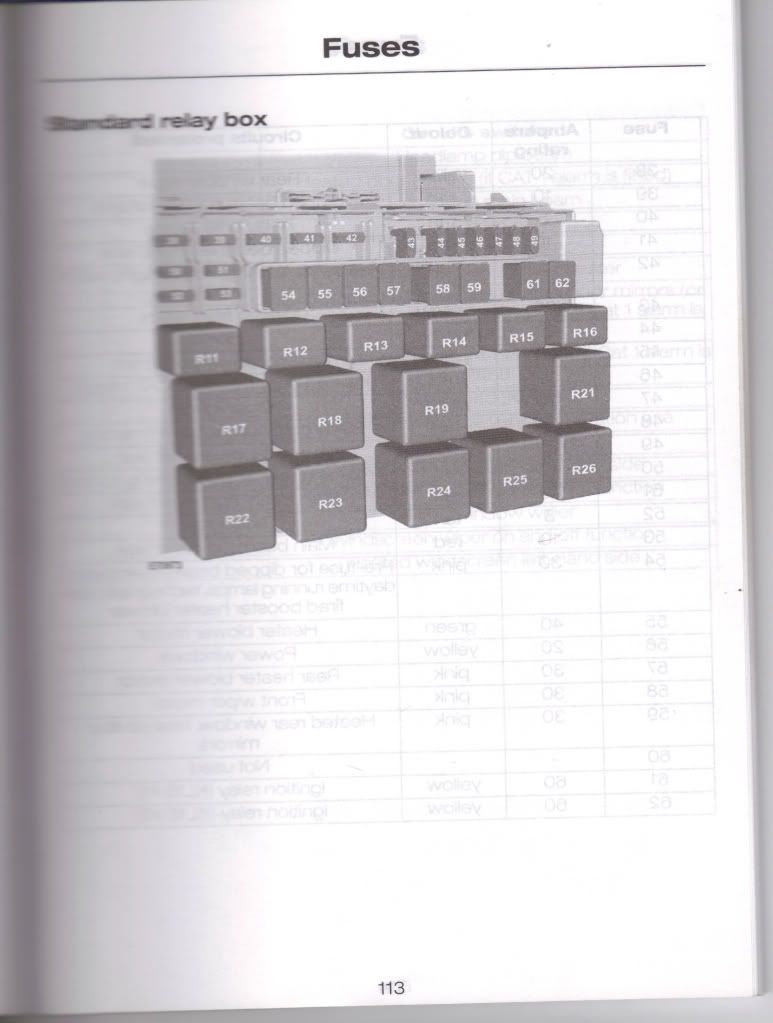

The details for this box are here

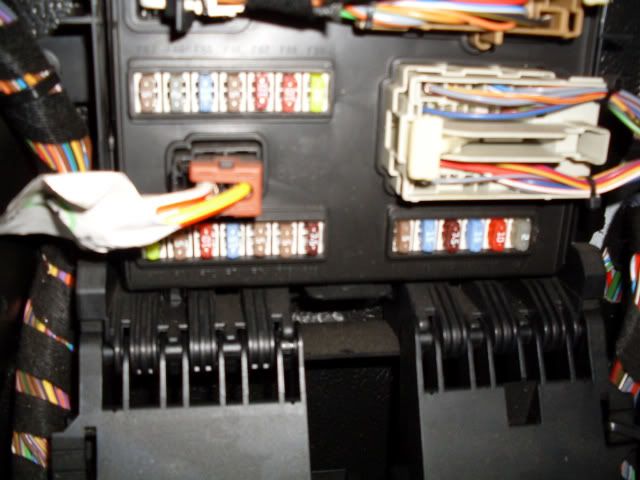

If you then unclip the top of the first fuse box and pull it forward and allow it swing down you will have found the second fuse box


The details are here


Remember if a fuse keeps blowing it indicates a fault, get it repaired before you put another fuse in, NEVER replace a fuse with one of a differant rating to the one that should be there, this is a recipe for a fire.
2017 Ford Fiesta SportVan 1.5 TDCi 95ps

2 x 18 Custom 270 Trend
2 x 67 Custom 270 Trend
3 x 66 Custom 270 Trend
1 x 65 Custom 290 Limited
7 x 12 Transit 260 Trend


Is a dream a lie if it don't come true
Or is it something worse?
ake
Site Moderator

Posts: 41675
Joined: Wed Aug 06, 2008 8:19 pm
Location: The fair city o' Perth

Re: Fuse box MK7

Postby ake » Sun Aug 09, 2009 6:16 pm

The auxilllary fuse box fitted to some Transits



The fuse box is under the n/s top dash lid (take the 2 front screws out and then just pull itto release the clips) and the diagram is on the inside of the n/s dash lid

With thanks to Coconut for supplying the info and pictures
ake
Site Moderator

Posts: 41675
Joined: Wed Aug 06, 2008 8:19 pm
Location: The fair city o' Perth

Transit Mk7 Battery Fuse Box

Postby Altransit » Mon Jan 04, 2010 8:10 pm

Additional information regarding the battery fuse box, located under the drivers seat.
Information kindly provided by V8Dave


mk7 pre-fuses.png


Mk 7 battery or pre-fuse box.
Details from the ford owners handbook.
It lives in the rear of the drivers seat support behind the battery.

Note: this is the dual battery version with the large battery isolator relay. Single battery versions have a solid link in it's place. Access requires you to remove the battery restraint frame.
You do not have the required permissions to view the files attached to this post.
1997 Mk5 SWB 115 Minibus 70ps Di (Gone, but not forgotten!)
2004 Mk6 SWB T280 Medium Roof 85PS 2.0 TDDi - Vantunered (Also gone)
2008 Mk7 SWB T280 Medium Roof 85PS 2.2 TDCi - Also Vantunered
User avatar
Altransit
Site Moderator

Posts: 31848
Joined: Tue Oct 17, 2006 12:23 am
Location: Bicester, Oxfordshire, UK

Re: Fuse Details Fuse Box Location MK7

Postby Timbo » Fri Jul 29, 2011 9:36 pm

I found that some fuse locations didn't tally with the handbook that came with my van. (Early Mk7 and new handbook.) Led me a merry dance with a headlamp problem.

The variations are in the Standard Relay Box behind the glovebox.

Fuse Early Later
39 10A dipped beam Right side 10A Front & rear air con control
41 10A dipped beam Left side 5A Tachograph
50 10A Front & rear A/C control 10A main beam Left side
52 5A Tachograph 10A dipped beam Left side
53 10A main beam left side 10A dipped beam Right side

Hope this helps.
Timbo
Transit Devotee
Transit Devotee

Posts: 1032
Joined: Thu Oct 15, 2009 7:41 pm
Location: Enfield, North London.

Re: Fuse Details Fuse Box Location MK7

Postby tomg2000 » Wed Sep 14, 2011 7:39 pm

Just wanted to add that fuse 67 "Wiper Stalk Switch" should really be named "Front & Rear Windscreen Washer Motor"
Found this out after we blew it in the cold weather early this year!

Tom.
tomg2000
Newbie

Posts: 5
Joined: Sun Sep 11, 2011 7:57 pm
Location: Pembrokeshire

Re: Fuse Details Fuse Box Location MK7

Postby neilosTransit » Sun Dec 25, 2011 4:08 pm

Are there any spare fuses anywhere in the box? Are these fuses specific to Ford.
I'm searching my garage and only finding older bigger fuses.
Thanks for anyoone answering this on Christmas day (in hoping).
neilosTransit
Transit Addict
Transit Addict

Posts: 77
Joined: Sat Jun 18, 2011 1:05 pm

Re: Fuse Details Fuse Box Location MK7

Postby Mike » Sun Dec 25, 2011 4:44 pm

They're mini blade fuses http://www.consumabulbs.com/files/allbulbs.php?cat_id=3 bit I've had a few glasses of Gevrey so I may be wrong.
Mike
Wind up merchant!

Posts: 17383
Joined: Tue Feb 13, 2007 11:08 pm
Location: HP17 0UT

Re: Fuse Details Fuse Box Location MK7

Postby neilosTransit » Sun Dec 25, 2011 4:53 pm

Yes, bang on - mini blade fuses £1.69 from local garage. I found the spare fuse section in with under bonnet fuses - of course it was empty.
Time for some wine now.
Thanks for help.
neilosTransit
Transit Addict
Transit Addict

Posts: 77
Joined: Sat Jun 18, 2011 1:05 pm

Re: Fuse Details Fuse Box Location MK7

Postby bigfella1952 » Mon Feb 20, 2012 6:51 pm

Thanks, would have never have found it without your help.

The fuse for the wiper stalk, no 67, had blown, replaced it with a 15A as advised by yourselves.

However, the washer motor still not working, but if i put a live feed to the wiper motor, it operates via stalk, but the rear wiper works when i press it to wipe.

getting more confused, any more help appreciated.

Anyone local fancy looking at it, be a drink in it for you.

Regards

Paul

ps. on a good point, filled up with Total Diesel and EGR valve light has now extinguished.

xxxxx
bigfella1952
Transit Addict
Transit Addict

Posts: 40
Joined: Tue Feb 07, 2012 3:52 am
Location: Northwich, Cheshire

Re: Fuse Details Fuse Box Location MK7

Postby ake » Mon Feb 20, 2012 8:49 pm

bigfella1952 wrote:Thanks, would have never have found it without your help.

The fuse for the wiper stalk, no 67, had blown, replaced it with a 15A as advised by yourselves.

However, the washer motor still not working, but if i put a live feed to the wiper motor, it operates via stalk, but the rear wiper works when i press it to wipe.

getting more confused, any more help appreciated.

Anyone local fancy looking at it, be a drink in it for you.

Regards

Paul

ps. on a good point, filled up with Total Diesel and EGR valve light has now extinguished.

xxxxx


Check the wiring to the motor where it comes down the inner wing, it is a known failure point, the loom has probably worn through
2017 Ford Fiesta SportVan 1.5 TDCi 95ps

2 x 18 Custom 270 Trend
2 x 67 Custom 270 Trend
3 x 66 Custom 270 Trend
1 x 65 Custom 290 Limited
7 x 12 Transit 260 Trend


Is a dream a lie if it don't come true
Or is it something worse?
ake
Site Moderator

Posts: 41675
Joined: Wed Aug 06, 2008 8:19 pm
Location: The fair city o' Perth

Re: Fuse Details Fuse Box Location MK7

Postby loot » Mon May 07, 2012 9:45 pm

This is the info I was looking for when I joined the forum! I don't have as many relays as that on my main passenger fuzebox and more to the point there is no wiring for r22 and r26 so could some1 pls tell me if I need to go hunting around for a fuzebox that is higher spec, and will the loom plug straight in to my sytem?

does the wiring go to a pcm or something or just through the bulkhead to the ecu or engine?

Any info would be appreciated otherwise it means I'd have to start taking bits apart and tracing wires.

I am looking to wire up my heated screen BTW lol
User avatar
loot
Site Moderator

Posts: 26471
Joined: Sat May 05, 2012 6:06 pm
Location: North Wales

Re: Fuse Details Fuse Box Location MK7

Postby ake » Wed May 09, 2012 6:52 am

loot34 wrote:This is the info I was looking for when I joined the forum! I don't have as many relays as that on my main passenger fuzebox and more to the point there is no wiring for r22 and r26 so could some1 pls tell me if I need to go hunting around for a fuzebox that is higher spec, and will the loom plug straight in to my sytem?

does the wiring go to a pcm or something or just through the bulkhead to the ecu or engine?

Any info would be appreciated otherwise it means I'd have to start taking bits apart and tracing wires.

I am looking to wire up my heated screen BTW lol

No you cant just plug in a higher spec box, it forms part of the bcm which needs programming to your van by a Ford dealer. I reckon you just go for your plan b and wire screen through a timer and a couple of relays
2017 Ford Fiesta SportVan 1.5 TDCi 95ps

2 x 18 Custom 270 Trend
2 x 67 Custom 270 Trend
3 x 66 Custom 270 Trend
1 x 65 Custom 290 Limited
7 x 12 Transit 260 Trend


Is a dream a lie if it don't come true
Or is it something worse?
ake
Site Moderator

Posts: 41675
Joined: Wed Aug 06, 2008 8:19 pm
Location: The fair city o' Perth

Re: Fuse Details Fuse Box Location MK7

Postby loot » Wed May 09, 2012 11:21 am

Cheers ake should i get 2 fuses and 2 timer relays and copy spec or get away with connecting it all into 1?i know if a fuse blows i lose the whole window but if it's just a safety thing?
User avatar
loot
Site Moderator

Posts: 26471
Joined: Sat May 05, 2012 6:06 pm
Location: North Wales

Re: Fuse Details Fuse Box Location MK7

Postby ake » Wed May 09, 2012 6:01 pm

You need two relays and fuses cos the screen draws 25amps per side, so 50 amps total
2017 Ford Fiesta SportVan 1.5 TDCi 95ps

2 x 18 Custom 270 Trend
2 x 67 Custom 270 Trend
3 x 66 Custom 270 Trend
1 x 65 Custom 290 Limited
7 x 12 Transit 260 Trend


Is a dream a lie if it don't come true
Or is it something worse?
ake
Site Moderator

Posts: 41675
Joined: Wed Aug 06, 2008 8:19 pm
Location: The fair city o' Perth

Re: Fuse Details Fuse Box Location MK7

Postby APH » Thu May 17, 2012 7:48 pm

where's the central locking fuse / fuses on a mk7? are they still lost somewhere behind steering column, or now under the spare wheel...or somewhere equally as inconvenient !! Or are hey tied in wiht an existing fuse in one of the three boxes?. Any pics to help find them?

Regards,
Andy.
User avatar
APH
Transit Fanatic
Transit Fanatic

Posts: 2375
Joined: Thu Apr 12, 2007 7:29 pm
Location: Gravesend, Kent
